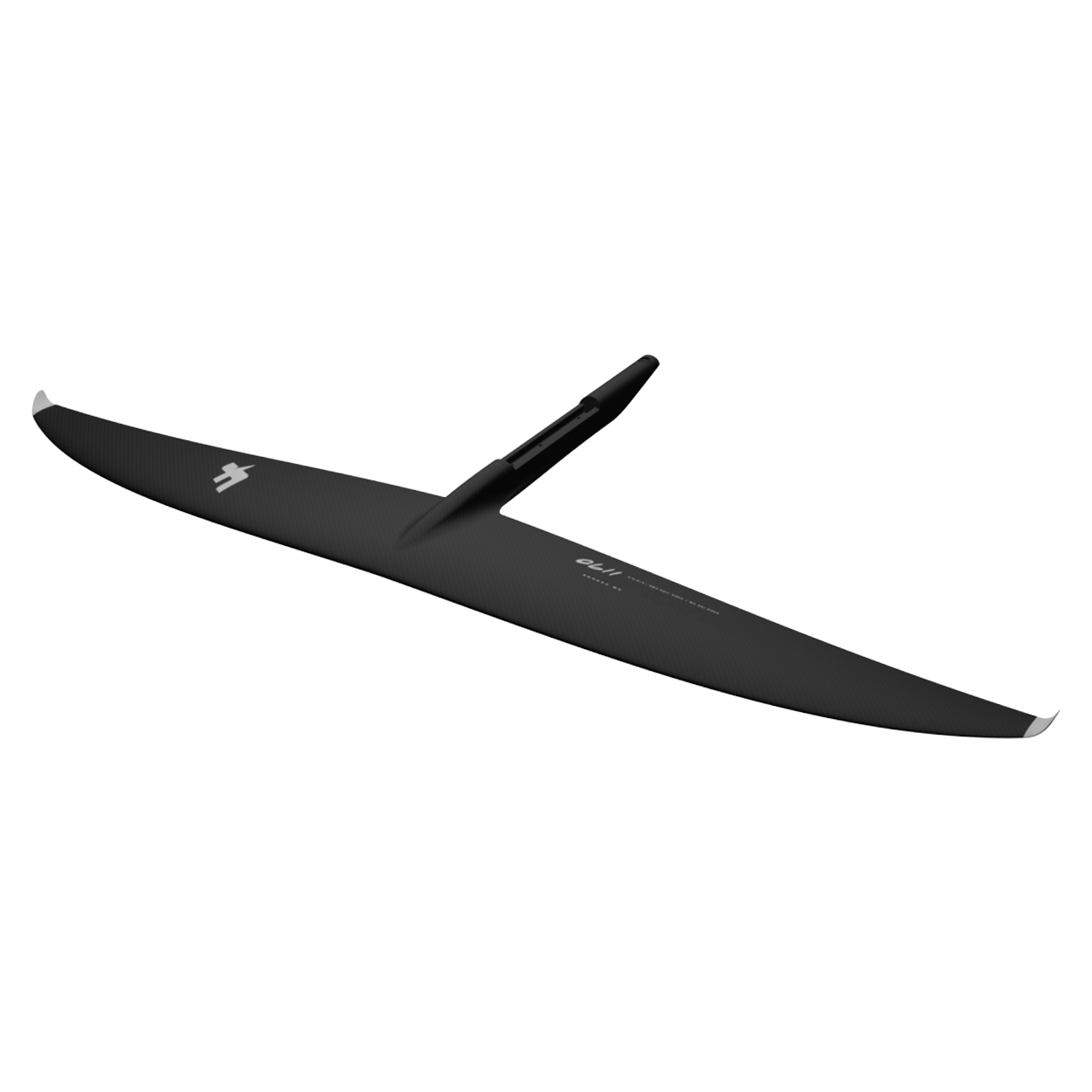

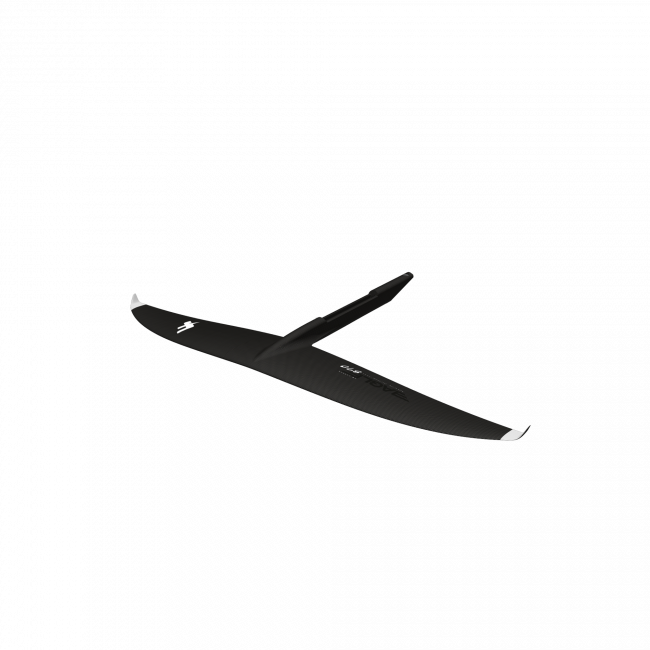

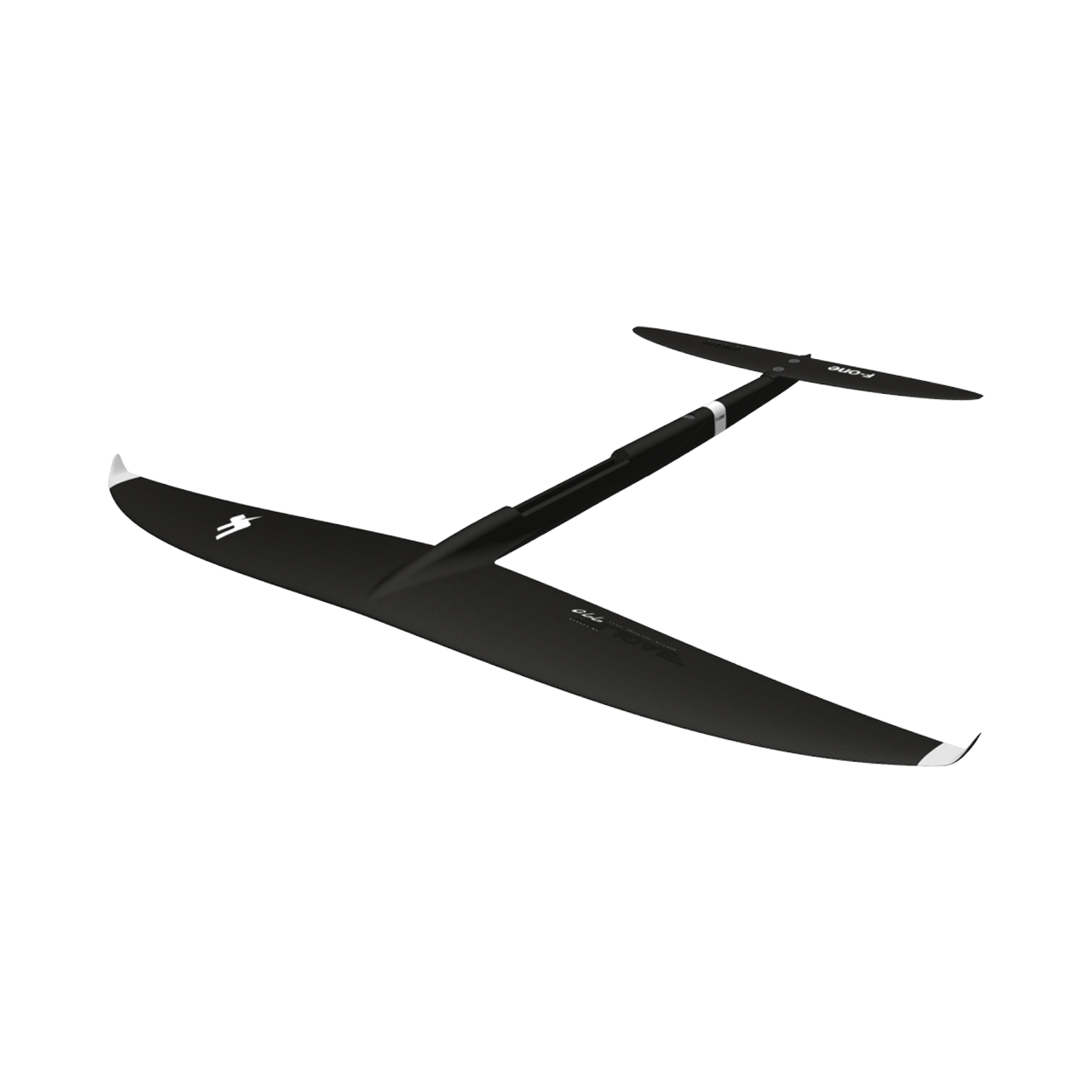

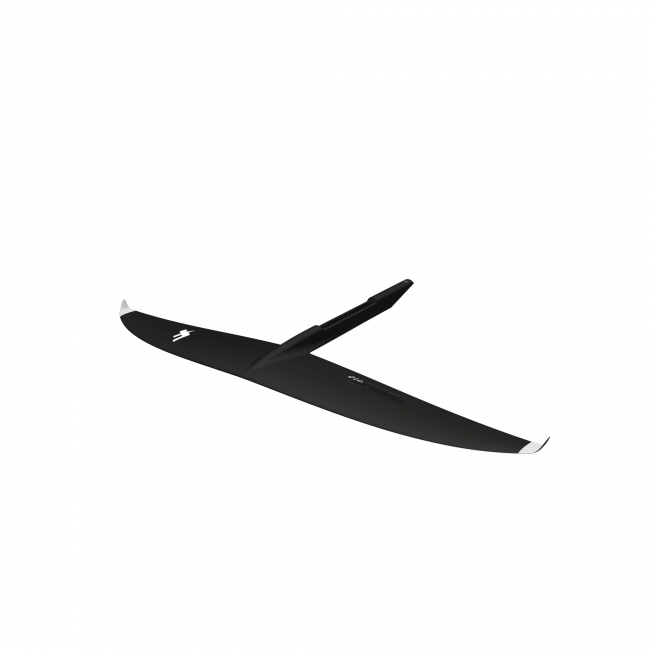

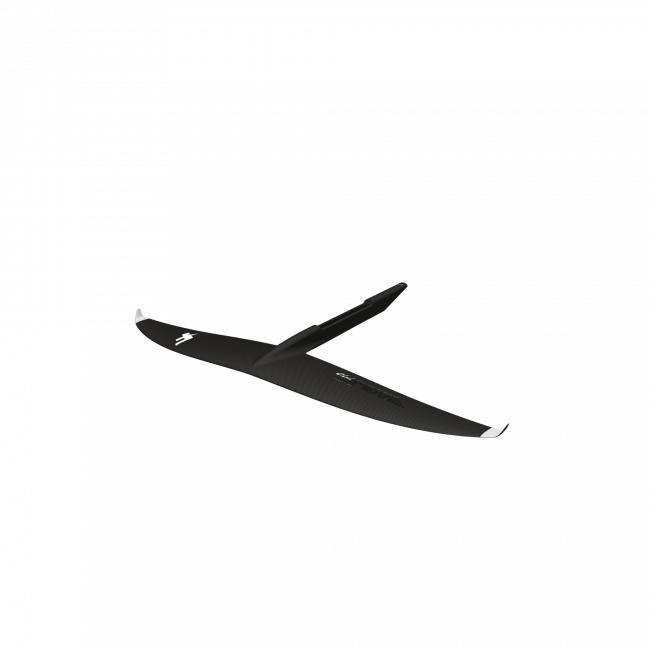

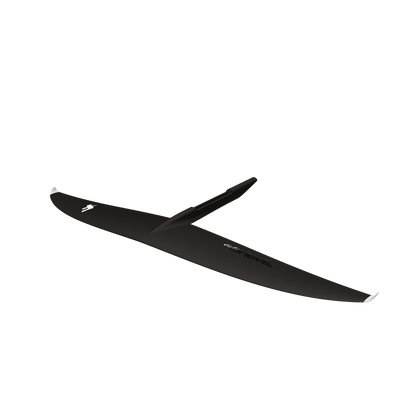

Eagle HM Carbon Front Wing
Couldn't load pickup availability
The foils of the EAGLE line are designed to bring you thrilling speed potential, incomparable downwind sensations, and everlasting cruising time above the water.
FULL DESCRIPTION
The EAGLE is the ideal foil for anybody seeking speed and fantastic downwind abilities. With its very thin profile and upturned winglets, the EAGLE’s induced drag is reduced to a minimum. It is a very efficient foil whose lift will allow you to stay above the water and cruise for longer than you could have ever imagined at any speed without the foil abruptly stalling and dropping.
Simultaneously, its upwind abilities are noteworthy, bringing comfort, stability, and constant speed to your wing foiling rides. Pumping is effective and precise, and manoeuvring will feel easy in any conditions.
Built using the Monobloc structure with pre-preg carbon, the foils are both very light and strong. This setup brings improved load transmission and better stiffness throughout the different parts for maximum control. The High Modulus Carbon fiber layup leads to even more rigidity and dependability that will propel you to incredible performances in each session. The TITAN connection allows to plug in either an aluminum or carbon mast.

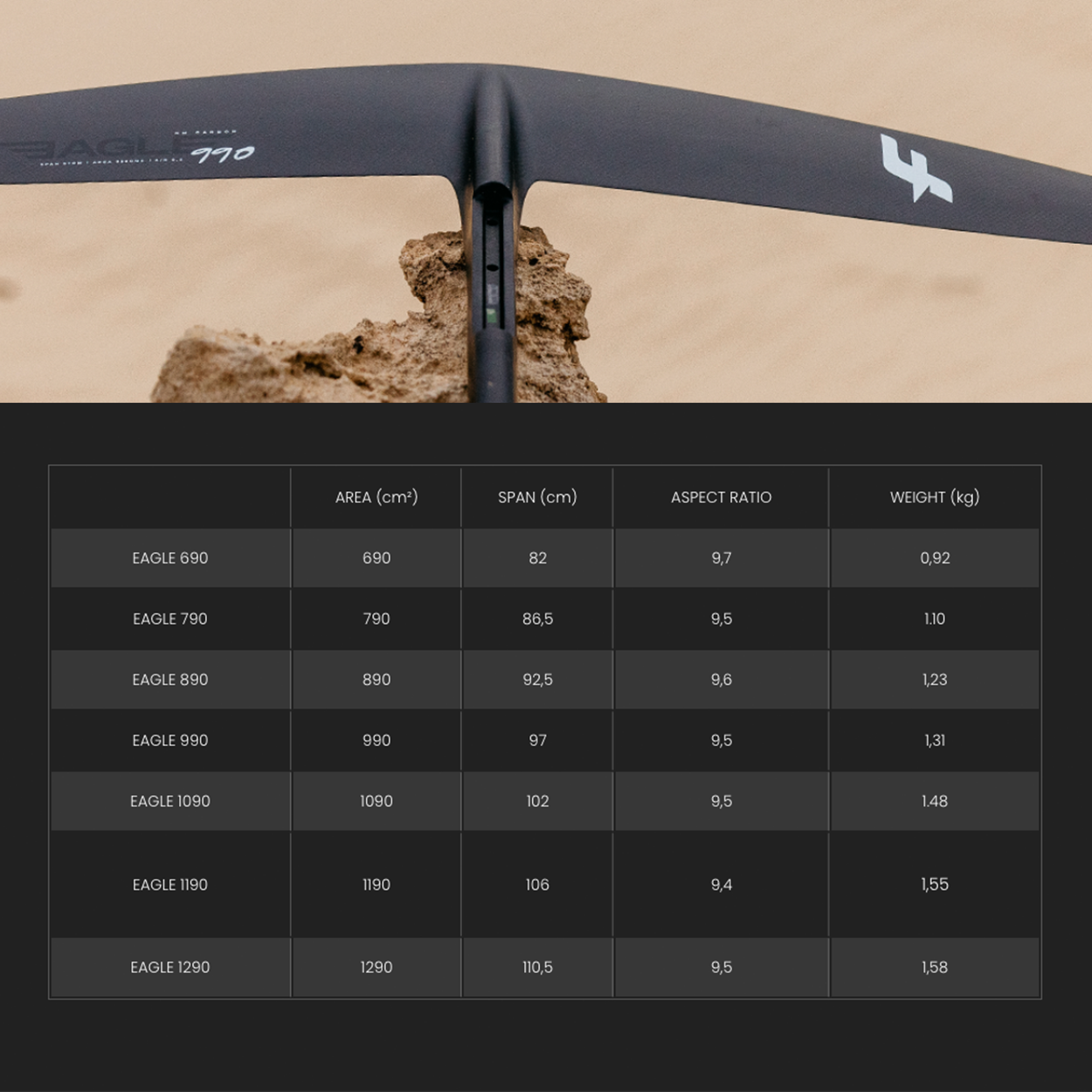

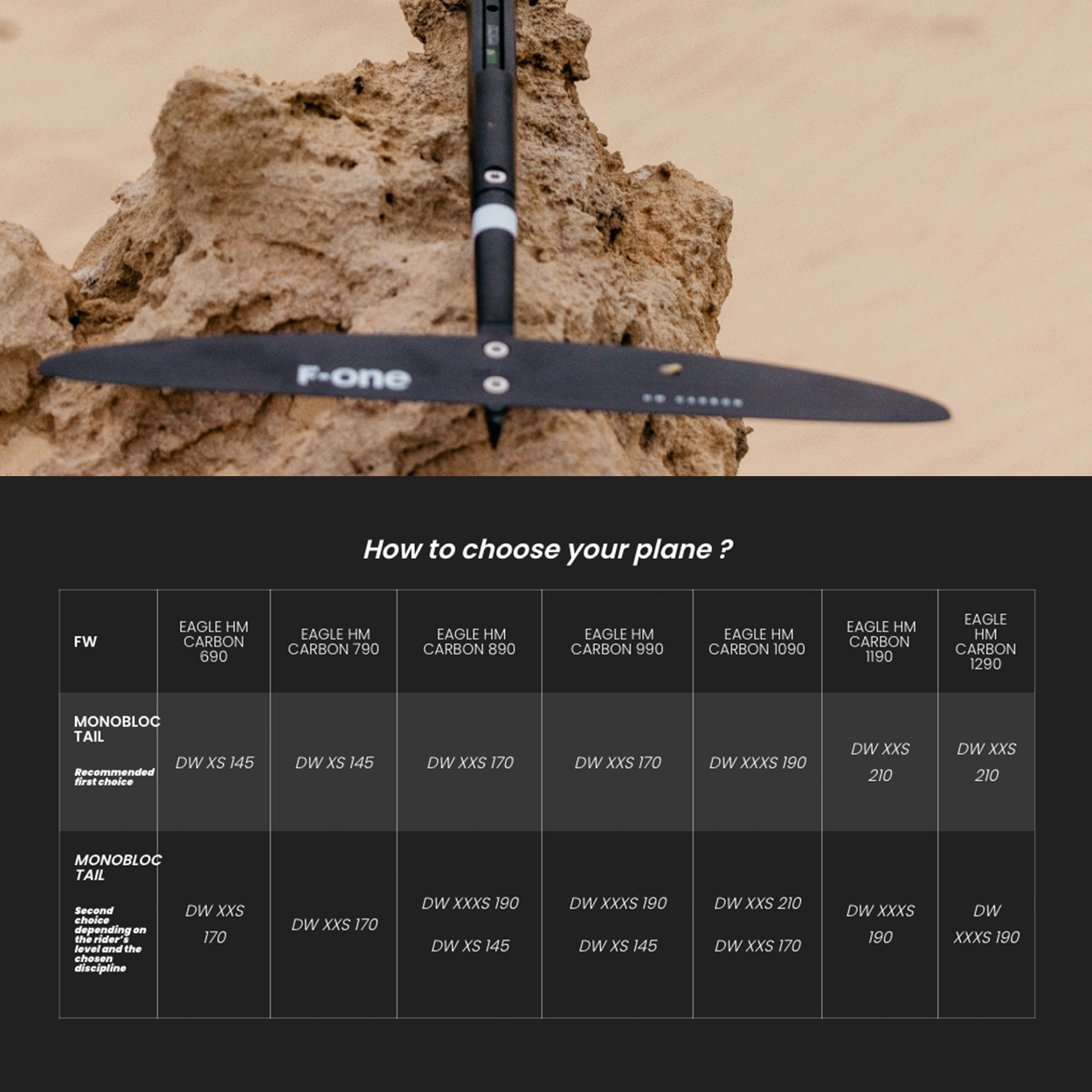

The EAGLE is available in seven sizes, from 690 cm² to 1290 cm².

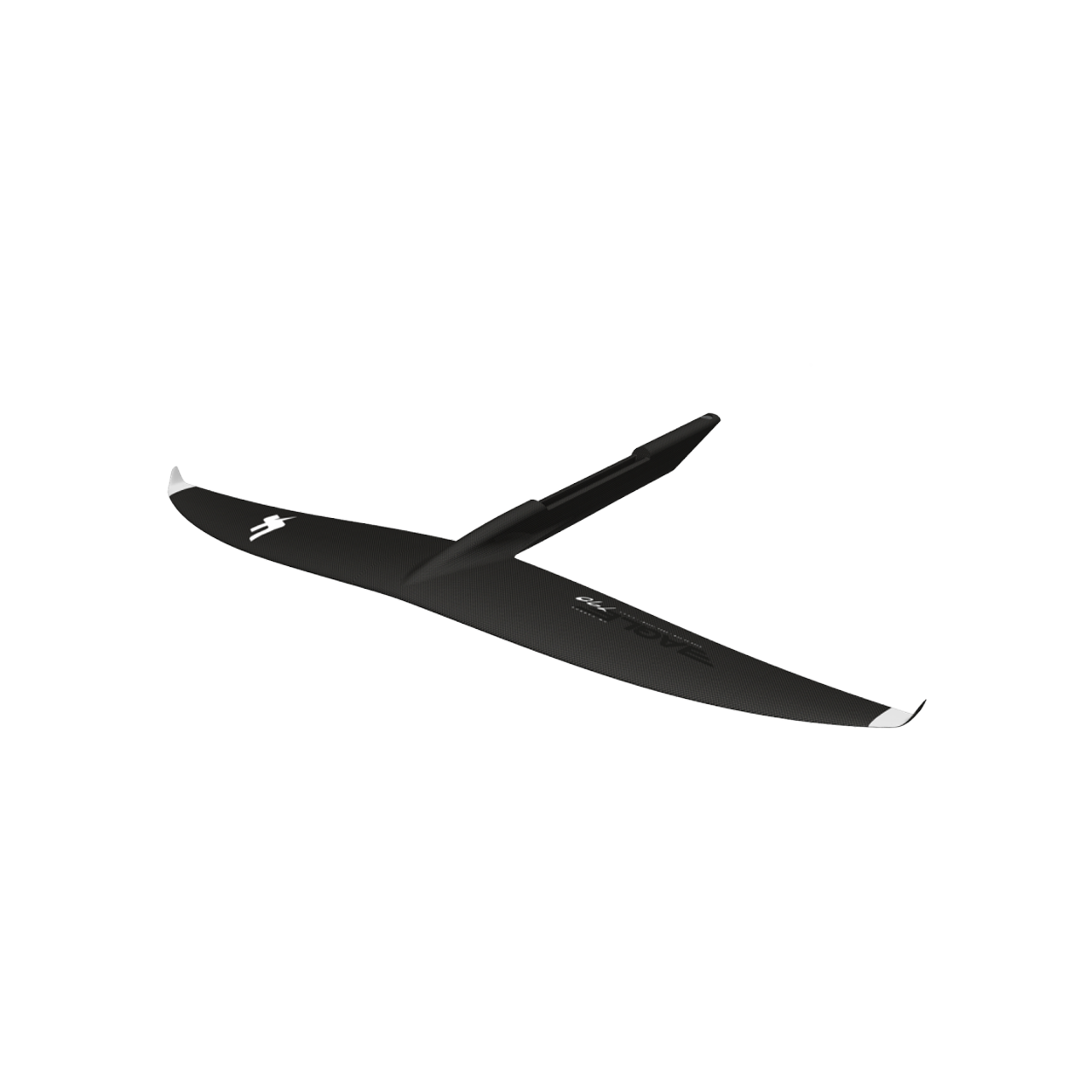

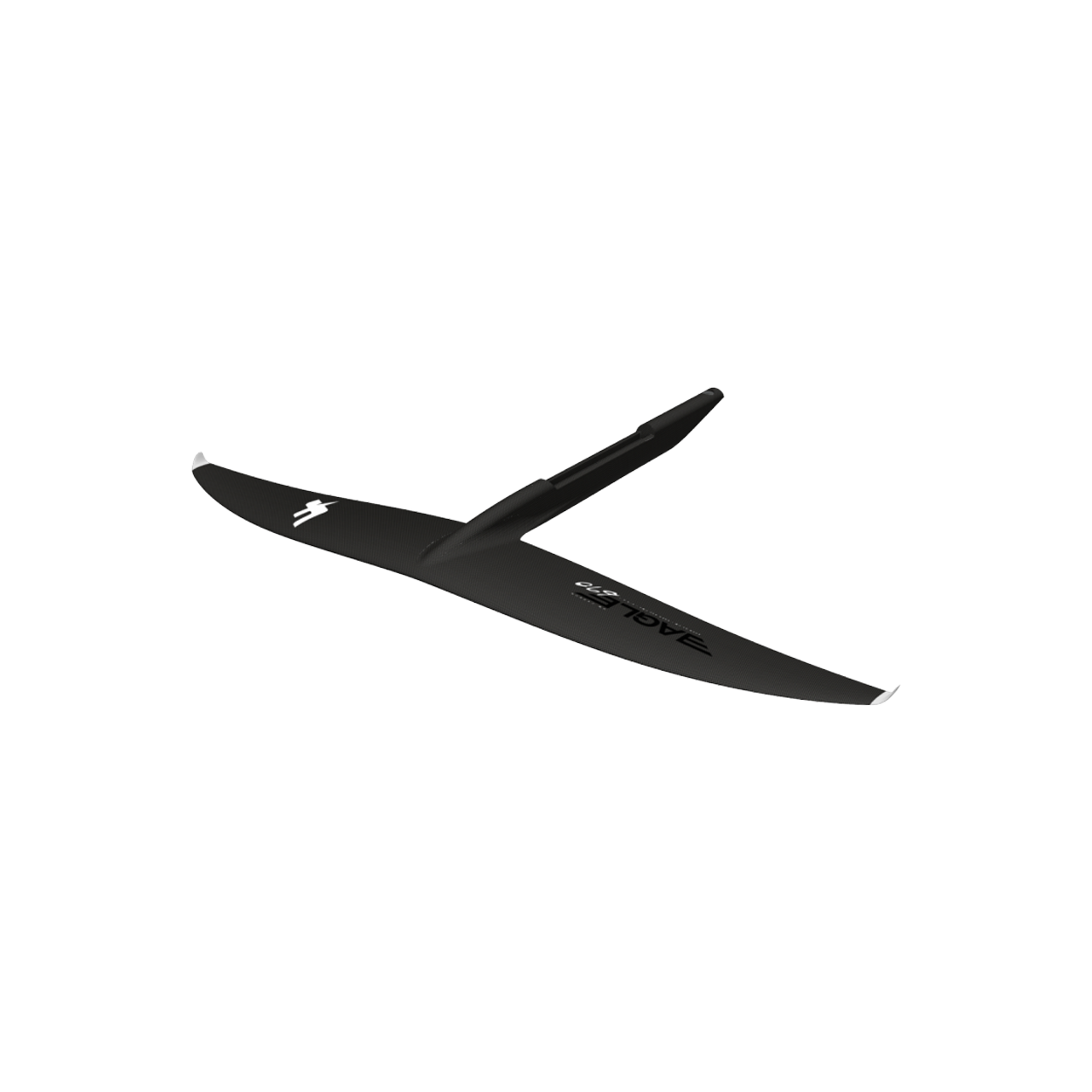

- The 690 cm² and the 790 cm² are perfect for a strong wing session or a long downwind. It will also fit riders of a smaller build and any experienced foiler looking to break their personal records.

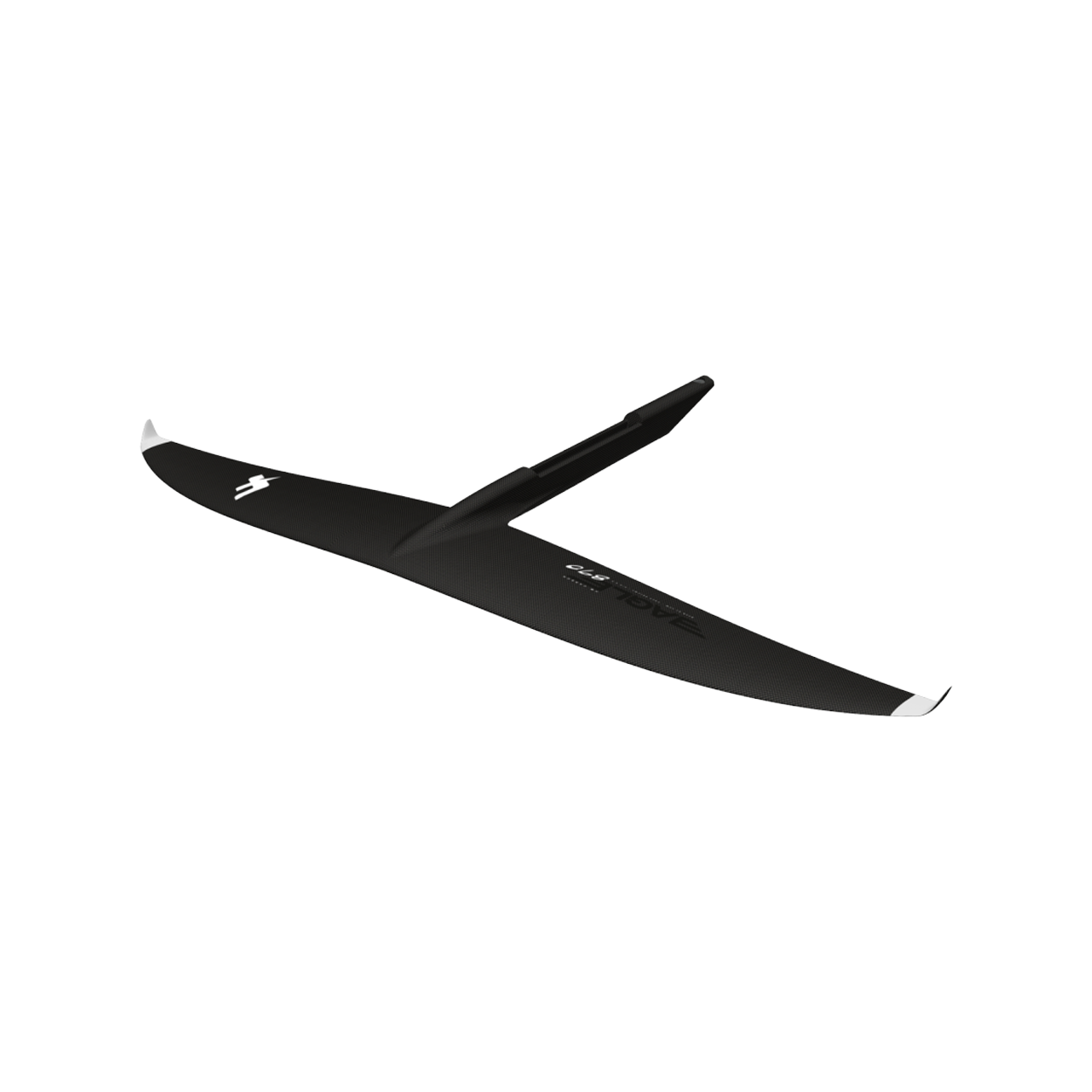

- The 890 cm² and 990 cm² are great all-round sizes that will satisfy a wide range of advanced riders looking for exhilarating sensations and a pure downwind glide.

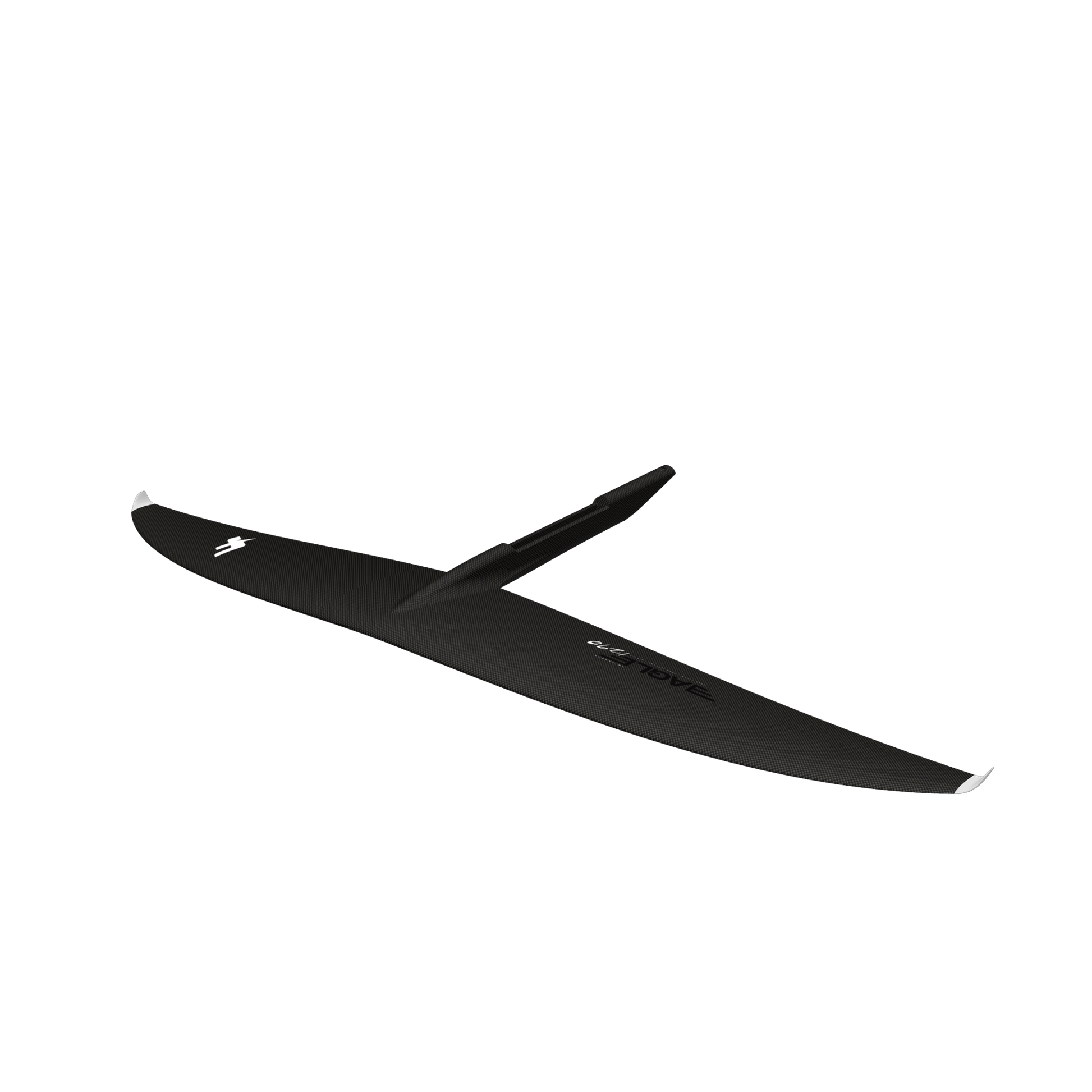

- The 1090 cm², 1190 cm² and 1290 cm² bring more accessibility to downwind. They are great choices to start in SUP downwind and for riders of a bigger stature. The 1290 will excel in light wind and flat downwinds as well.
* Downwinding requires physical preparation, proper security devices (ie. leash, flashlight, safety vest), and assistance at sea. Please do not attempt any downwinders alone nor without proper training.
KEY FEATURES
Remarkable speed and downwind performances
Unrivalled time above the water
Thin and optimised design for minimal drag
Comes with
FW EAGLE HM CARBON
EVA Soft cover
Packaging kit :
- Screws : 3x M6-32mm + 2x M6-25mm tapered head screws
- Tool : Torx key
- User Guide
TECHNOLOGY
HM
The High Modulus Carbon fibre layup is 1.5x stiffer than the regular carbon fibre used in other constructions. The percentage of high modulus fibre has been carefully adjusted to obtain the best stiffness in both bending and torsion while keeping enough comfort for any kind of practice.
PRE PREG TECHNOLOGY
Pre-preg makes the foils stiffer and stronger. With pre-preg fabrics, the carbon fibre is directly impregnated with epoxy resin by its manufacturer. This guarantees a perfect ratio between epoxy and carbon and represents the highest quality process. It is then cured at high temperature, bringing strength and durability.
Quality control is much better and so is the working environment for the people building our foils. Pre-preg fabrics offer the lightest weight with the best mechanical properties of carbon fibre.
MONOBLOC FRONT WING
Having a stiff and solid assembly between all the parts of the foil is key to making it perform at its best as well as easy to handle.
The connection of the front wing with the fuselage is highly stressed and loaded, so it is one of the critical areas of the assembly in terms of structures.
The Monobloc front wings are moulded together with the fuselage in one shot, thereby removing the connection and the chances for unwanted and parasitic movements.
The structural fibres of the fuselage are spread into the wing to achieve the smoothest and lightest connection.
It is also incredibly stiff and provides absolute control at all times, with the foil responding perfectly to all of the riders’ input.
When the overall dimensions are too large for convenient transportation, a connection is set into the fuselage, behind the mast where the loads are smaller.
TITAN CONNECTION
The TITAN connection enables a very stiff and direct connection between two parts, locking efficiently any movement in all directions.
Its format is compact which is hydrodynamically efficient and very easy to use, assemble and disassemble.
